Fire Fighting and Safety

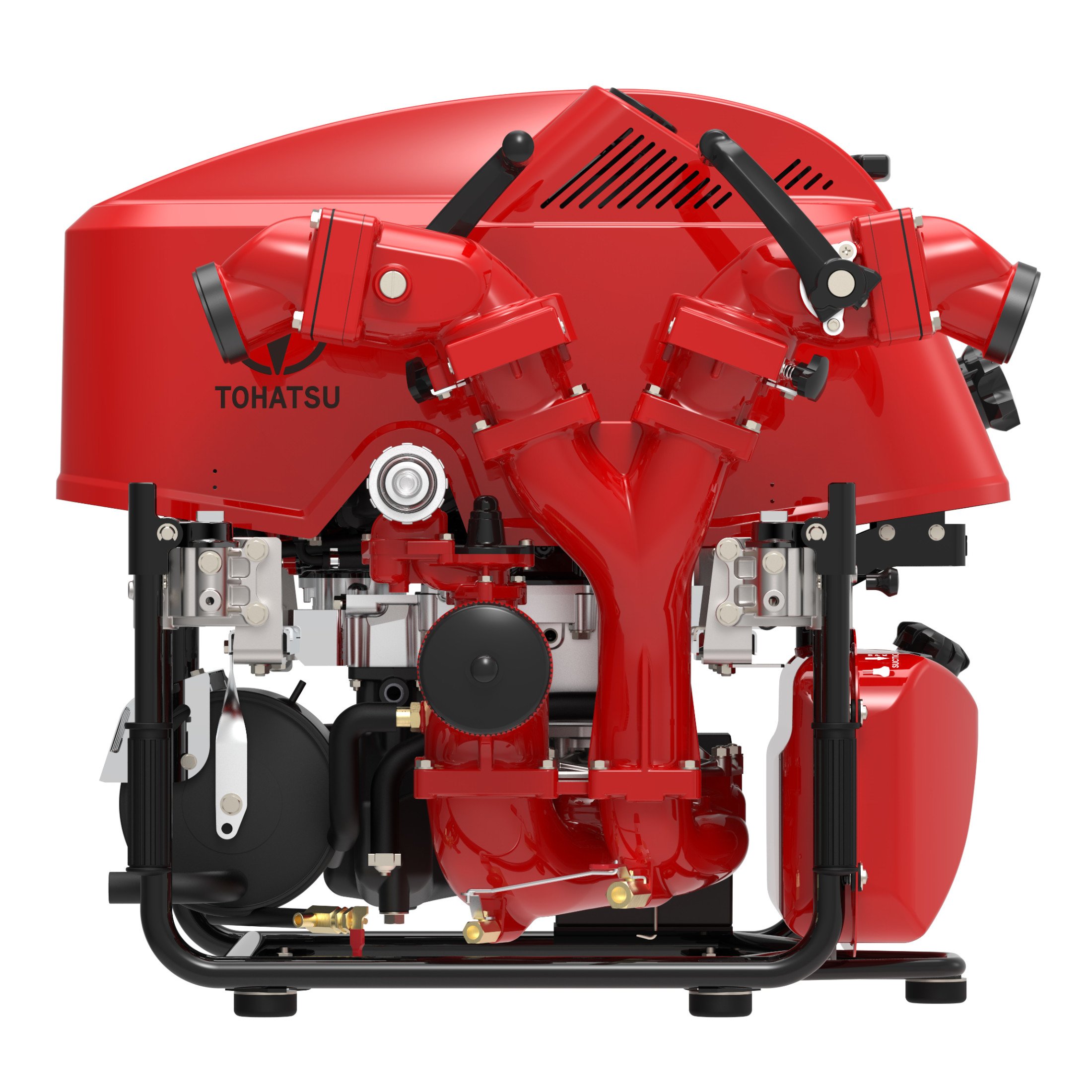

FIRE FIGHTING PUMP

V20FS

Pump performance
525 liter / min. at 0.6MPa
250 liter / min. at 0.8MPa
VC52AS

Pump performance
1250 liter / min. at 0.6MPa
1000 liter / min. at 0.8MPa
600 liter / min. at 1.0MPa
VC72AS

Pump performance
1550 liter / min. at 0.6MPa
1300 liter / min. at 0.8MPa
950 liter / min. at 1.0MPa
VE1500-W

Pump performance
2050 liter / min. at 0.6MPa
1800 liter / min. at 0.8MPa
1500 liter / min. at 1.0MPa
VE1500A-Ti (Built for Fire Engine and Fire Boat)

> Exclusive design for fire engine & fire boat.
> Drive-By-Wire system for operating with remote control panels.
> Automatic priming system.

AUTOMATIC RELAY PUMP ( The first world automatic relay pump )

VF63AS-R (4 Stroke )

Performance
1200 liter / min. at 0.6MPa
950 liter / min. at 0.8MPa
700 liter / min. at 1.0MPa

Example of use in automatic relay operation. (No operator is required at the relay pumps.)
The relay pumping line with VF63AS-R can be extended as long as necessary.

OPTIONAL ACCESSORIES

Tohatsu Floating Strainer

All-purpose & vesatile suction device for emergency & tough condition.

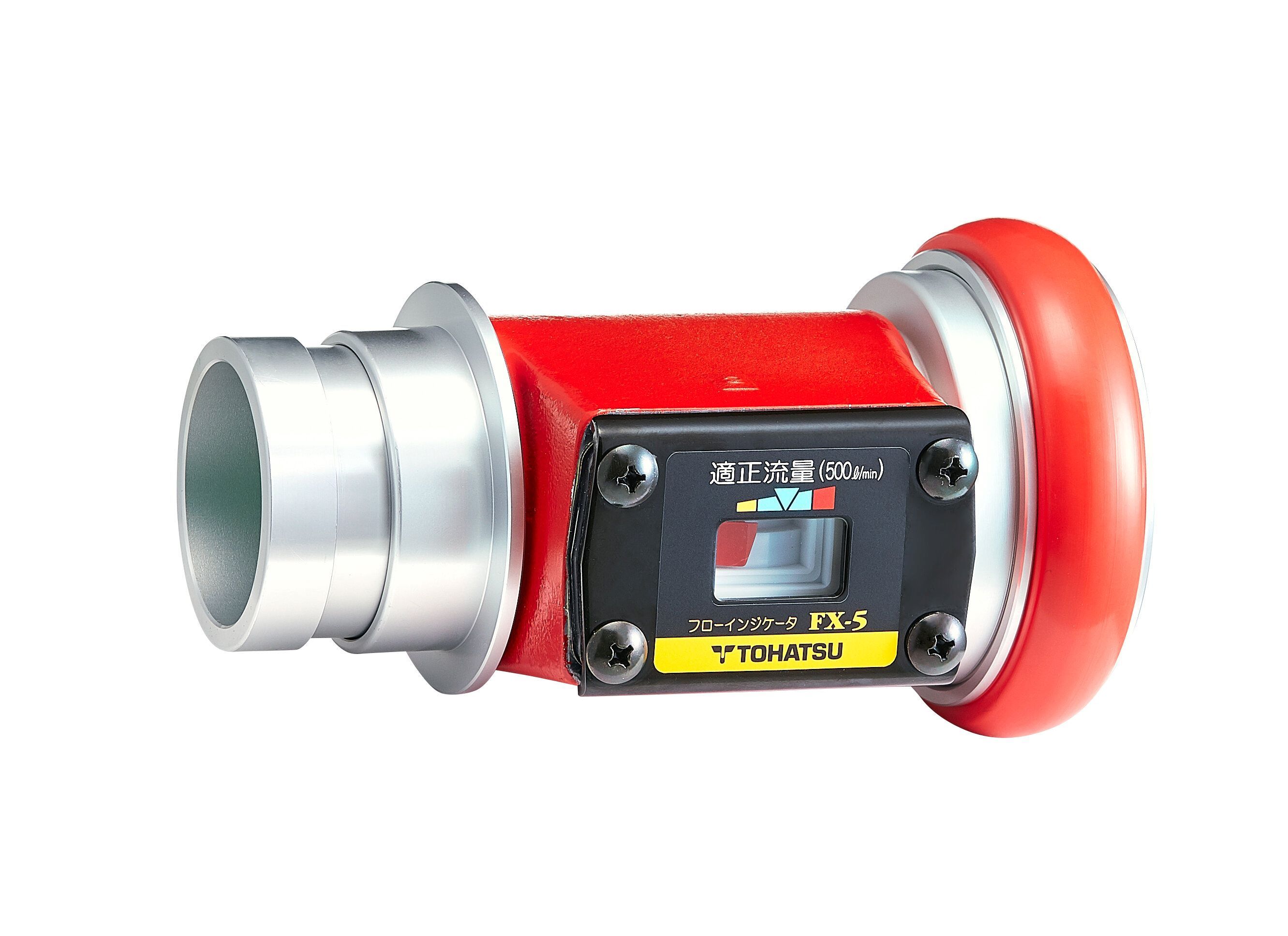

Flow Indicator

It is not necessary to calculate the pressure loss of fire hose in operation. The operator is able to check easily to see if you can have proper water flow in the hose or not.
Tohatsu Water Relief Valve

Hassle-free pressure control work in relay pumping operation.
Maintenance Bucket

Easy & Convenient flushing device to protect from corrosion.

MINI FIRE TRUCK

Page Top

Truck Type
Deck Van Type
FRP Type

CUSTOMIZED FIREFIGHTING MODEULE
Firefighters are protecting us in various conditions & environments and always have to find the best & appropriate firefighting system. In order to offer the best solution, TOHATSU would design & develop the firefighting module for every demand.

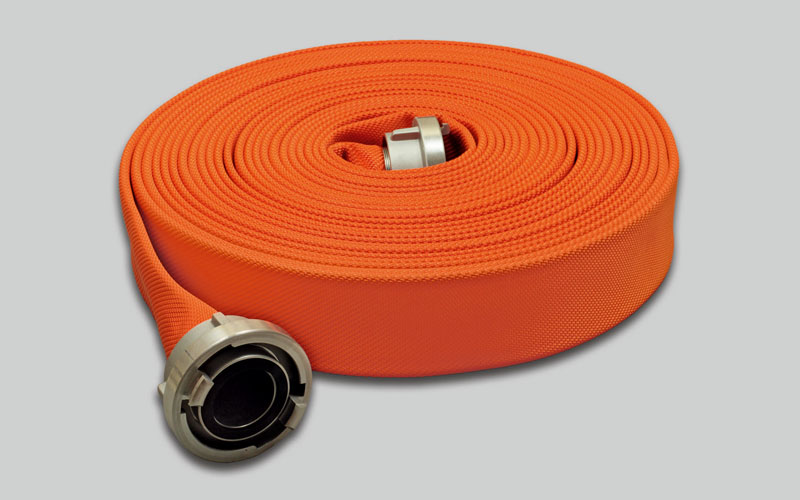

FIRE HOSE

Syntex 500-Red
Syntex 500-Orange
Syntex 500-Yellow
Syntex 500-White

HEAT-RESISTANT CLOTHING, HEAT-RESISTANT WORK CLOTHES

Fireproof Clothing

FC-60:

Fire-fighting operation, Rescue operation, Escape guidance from the fire

<Feature>
・SCBA can be worn over the coat.
・The foundation cloth coated with special synthetic rubber and aluminum powder provides excellent water proof and radiant heat resistance.
・Weight: Approx. 5.0 kg.
Heat-resistant Clothing

FC-30PM:

Fire-fighting operation, Rescue operation, Escape guidance from the fire

<Feature>
・It carbonizes at 450 - 500°C in the flame.
・Capable of carrying any kind of SCBA (including oxygen breathing apparatus) inside the clothing.
・Tailored with non-asbestos materials, alamid / carbon textile for excellent heat resistance.
・Weight: Approx. 9.8 kg.

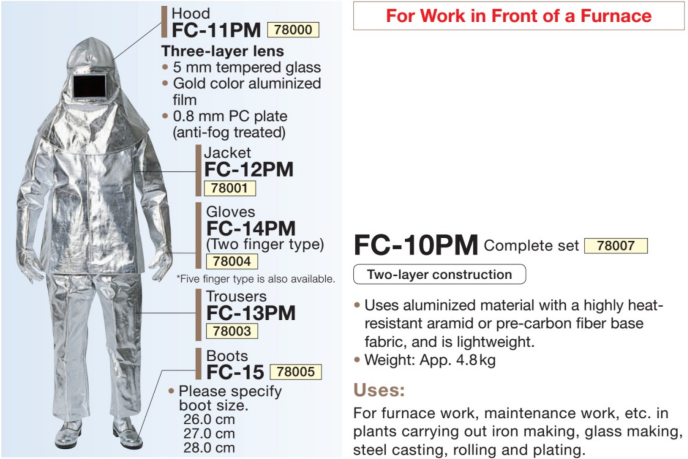

Heat-resitant Work Clothes

FC-10PM:

For work at the front of a furnace and maintenance work at the plants of iron manufacturing, glass, casting, cast steel, flatting, plating, etc.

<Feature>
・Tailored with non-asbestos materials, alamid / carbon textile for excellent heat resistance.
・Weight: Approx. 4.8 kg.

PROTECTIVE CLOTHING, DISPOSABLE RESPIRATOR, and EYE PROTECTOR

Whole-Body Protecitve Clothing

PS-410K:

JIST8115 Approved
Size S (Wearer's Height 152-164cm)
Size M(Wearer's Height 158-170cm)
Size L (Wearer's Height 170-182cm)
Size XL (Wearer's Height 176-188cm)

<Notes>
- Jacket with hood and trousers are supplied individually.
- No waist belt for trousers.
N95Mask(NIOSH-Approved N95)
Khẩu Trang N95 - 3D Mask

N95 Mask (NIOSH-Approved N95):

This disaposable respirator can be used against airborne droplet containing virus, and minimizes the chance of getting a virus at medical facility.

<Safety Three Functions>
- AdjusterHead strap length is adjustable. Material : polyurethane
- Nose cushion on underside of respirator for better air tightness, preventing outside air from entering.
-Nose clip on outside of respirator enable fi tting to the shape of the wearer's nose.

<Feature>
・Lambda-line is the nickname for the respirator with a V (lambda)-shaped retaining tape that fi rmly keeps its original 3D structure..
EYE PROTECTOR

EE-12:

<Materials>
・Lens: PC (Polycarbonate)
・Frame: PA (Polyamide)
・Nose Pad: PVC(Polyvinyl Chloride)

There are many kinds of eye protectors which are used to protect workers' eyes from dust, checmical splashes and splashed materials generated during work such demolition, spray painting and handling of chemical

BIO HAZARD MANAGEMENT

Automatic Sterilization System

Product Information
SaniCom sprays completely safe chemical solution of 10μm-size particles that is spread in a room to every corner. Among four models of SaniCom, Small version is suitable for small space such as a toilet.

Features
· Spray by SaniCom for 30 minutes in every morning leads to sterilize Escherichia coli by about 98%.
· “Stabilized Chlorine Dioxide” used as sterilizing agent that is much more potent than Sodium Hypochlorite and exerts its effect for a long time.
· “Stabilized Chlorine Dioxide” is a liquid product certified for safety by Ministry of Health, Japan and the relevant International & USA organizations such as ECFA / ADI / FDA / USDA / FSIS / HACCP.

Sales performance
In total more than 13,000 units like food factory, restaurant kitchen, hotel, nursing home for the aged, locker room in stadium, passenger vessel etc.
.
